Server Info

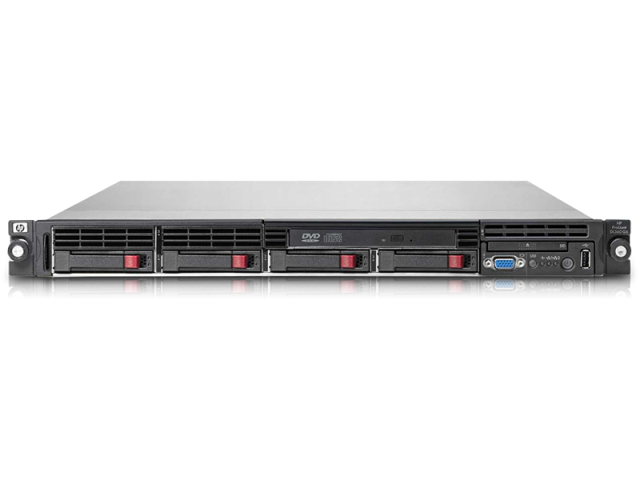

Hp Proliant Gl360 G7​

src

General Information​

manufacturer: Hewlett Packard Enterprise
manufacturer Part Number: 579237-B21
MANUFACTURER Website Address: WWW.HPE.COM
PRODUCT Name: Proliant Dl360 G7 1u Cto Chassis Server

Processor & Chipset​

processor Type: Intel Xeon Processor
installed Qty: 0
supported Processor:

  • Xeon:
  • X5670(2.93 Ghz), X5660(2.80 Ghz), X5650(2.66 Ghz), L5640(2.26 Ghz)
  • E5640(2.66 Ghz), E5630(2.53 Ghz), E5620(2.40 Ghz), E5506(2.13 Ghz), L5630(2.13 Ghz)
  • E5503 (2.00 Ghz)
    chipset Type: Intel 5520

Ram​

installed Size: 32 Gb
max Supported Size: 192 Gb
ram Technology: Ddr3 Sdram - Advanced Ecc
memory Speed: 1333 Mhz
memory Specification Compliance: Pc3-10600r

Storage & Storage Controller​

hard Drive: None
optical Drive: None
internal Storage: 4 Sff Sas/sata Hdd Bays (with Optional 4sff Hdd Upgrade)
storage Controller Type: Hp Integrated Lights-out 3 (ilo 3) Embedded

Display & Graphics Controller​

graphics Controller Type: Integrated
graphics Processor: Ati Es1000
max Allocated Ram Size: 32 Mb
supported Resolution:

  • 16 Bit Color: Maximum Resolution Of 1600 X 1200
  • 32 Bit Color: Maximum Resolution Of 1280 X 1024

Networking​

networking: Network Adapter - Pci Express X4 - Integrated
ethernet Ports: 4 X Gigabit Ethernet
ethernet Controller: 2 X Hp Nc382i
data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
remote Management Controller: Integrated Lights-out 3
features: Wake On Lan (wol), Acpi Support, Pxe Support
compliant Standards:

  • Ieee 802.3, Ieee 802.3u, Ieee 802.1q
  • Ieee 802.3ab, Ieee 802.1p, Ieee 802.3ad (lacp)

Expansion / Connectivity​

expansion Bays Total (free):

  • 4 (4) X Hot-swap - 2.5in Sff
  • 1 (2) X Front Accessible - 5.25in Slim Line

expansion Slots Total (free):

  • 1 (1) X Pci Express 2.0 X16 - Full-length, Full-height
  • 1 (1) X Pci Express 2.0 X8 - Low-profile
  • 18 (18) X Memory - Dimm 240-pin
  • 2 (2) X Processor

interfaces:

  • 1 X Serial - Rs-232 - 9 Pin D-sub (db-9)
  • 1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) (1 Front, 1 Rear)
  • 3 X Usb - 4 Pin Usb Type A (1 Front, 2 Rear)
  • 4 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45
  • 1 X Management - Hp Ilo - Rj-45

Dimension & Weight​

height: 1.70 In
width: 16.78 In
depth: 27.25 In
weight: 32 Lb
